Illuminated for impressive visuals

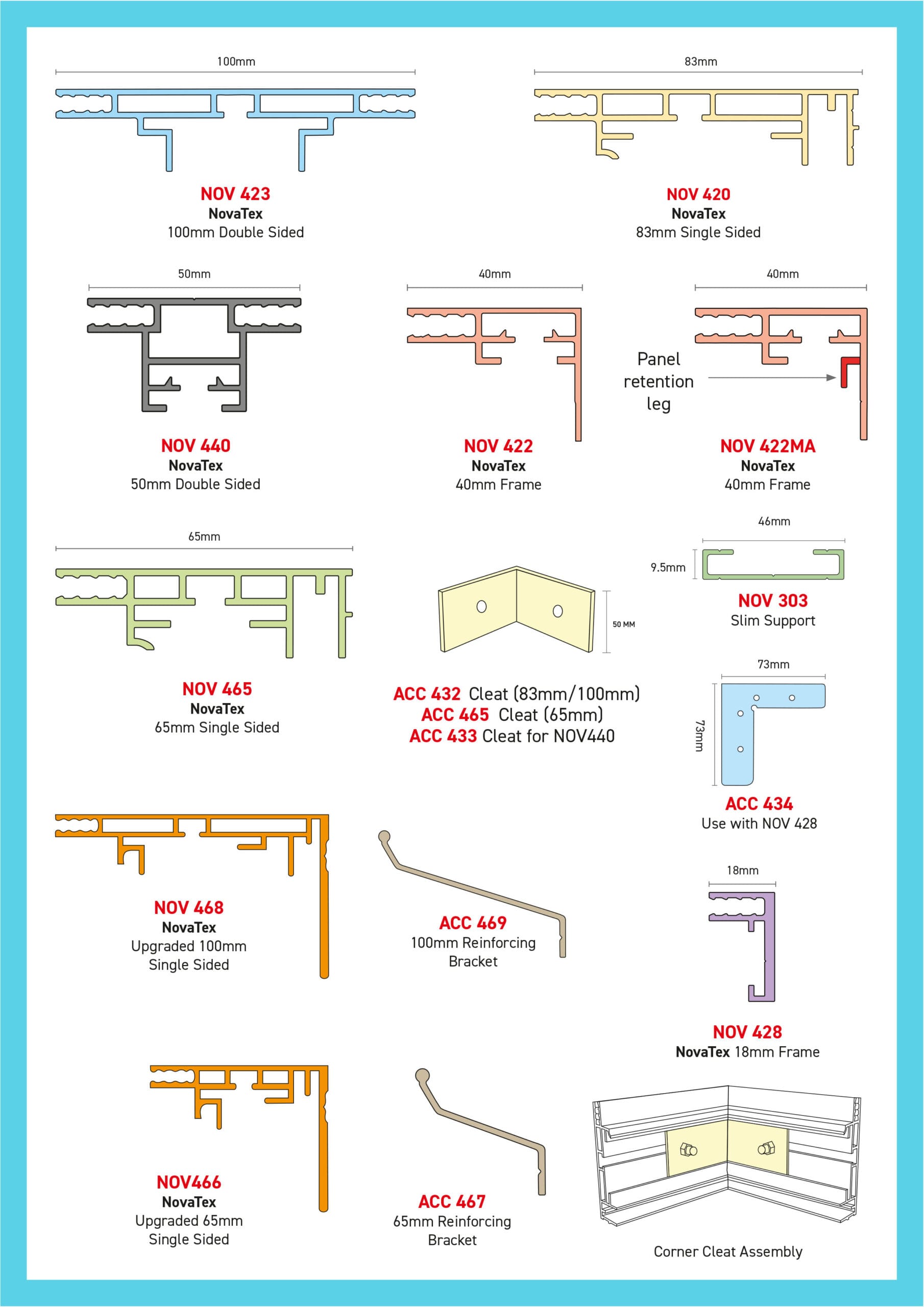

The 40mm, 65mm, 83mm and 100mm frames provide distinctive visuals when illuminated using LEDs, and all power supplies are housed within the box – both convenient and providing an elegant simplicity.Meanwhile, at just 18mm deep the non-illuminated frame is our most cost-effective option.The upgraded 40mm profile comes with an improved design which accommodates an internal leg. This allows the back sheet to slide in, rather than be face mounted.At either 100mm or just 50mm in depth, the double-sided extrusion has the facility for internal strengthening to prevent distortion. When hanging, NovaTex will take an eyebolt in its specially designed channel, which can be positioned at any point along its length. Strengthening bars can be fitted within the frame to provide additional support.We can include bespoke free-standing feet on the sides or base plates.

Easy to install

All six options are completely screw free making them aesthetically ideal for low level signage.Printed skins are supplied with a silicone edge stitched around the perimeter. This allows the installer to simply push the skin into the extrusion with just their thumb, no tools required. The skin will have a pull tab located on one edge to allow for rapid removal when updating the graphics.We offer upgraded designs for the 65mm and 100mm depths. These clever innovations reduce manufacturing costs with savings passed on to you; have faster build and installation times; and come with full perimeter fixing choice rather than the traditional more limited fixing points. It is also possible to reinforce these updated models anywhere around the perimeter, as required. A further advantage of the new designs is that no internal supports are needed.NovaTex is suited to a range of retail and other settings, including point-of-sale in-store, within car showrooms, for exhibitions and at airports. NovaTex is suited to a range of retail and other settings, including at point of sale instore, within car showrooms and at airports.
